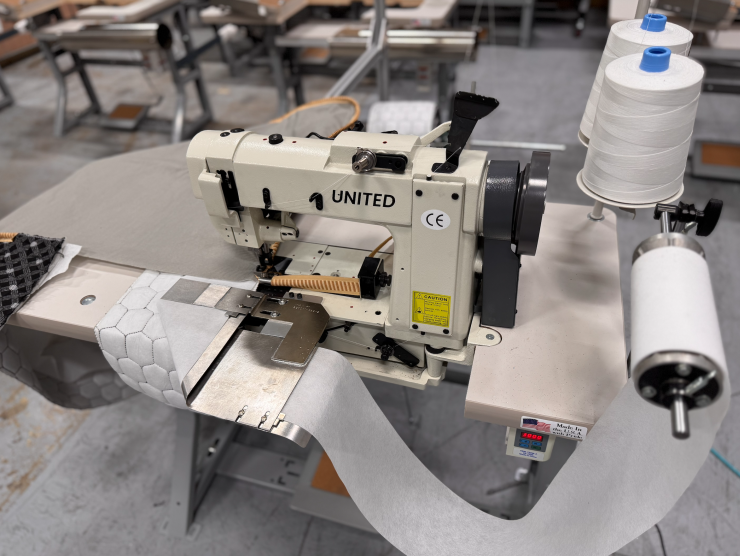

UM-400-BS Panel-Binding & Continental Cover Machine
UM-400-BS Panel-Binding & Continental Cover Machine
UM-400-BS Panel-Binding & Continental Cover Machine
The UM-400-BS, with its variable top feed system, can sew all types of materials from stretchy material, non-woven, to no stretch materials.
Product Information
Technical Details
Catalog
Prepares the non-quilted side of no-flip bedding
High-lift walking foot variable top feed
Single-needle chainstitch sewing head
Accepts either border rolls or pre-closed borders
Deskills operation for sewing operator
Retractable binder assembly
Full adjustable feed both top and bottom
direct drive engine
touch screen
Electric foot lift
needle positioner
Finger touch chain cutter
Yield: 170 +/- foundations/8 hour shift
Material: 1/2-4″ (12.7-101mm)
Stitch type
Single needle chainstitch
Max speed (rpm)
5000
Recommended speed (rpm)
4000
Needle type
DCx27
Needle size
21
Motor type
servo needle positioner
Max thickness capacity
4″ (101.6mm)
Voltage
220 (alternative voltages available)
Yield
170 +/- foundations /8 hour shift
Current (amps)
5
Air pressure (psi)
80
Air consumption (cfm)
6
Download
