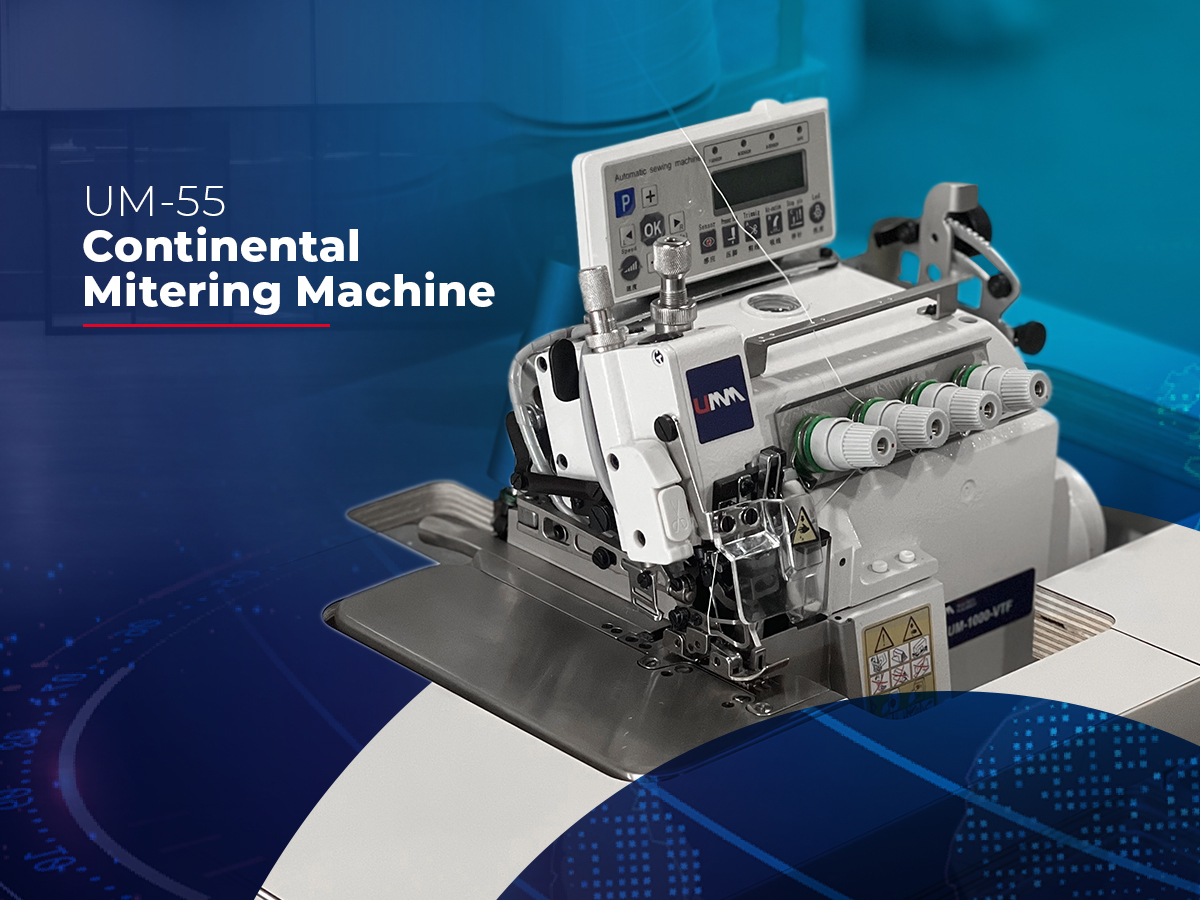

UM-55 Continental Mitering Machine
UM-55 Continental Mitering Machine

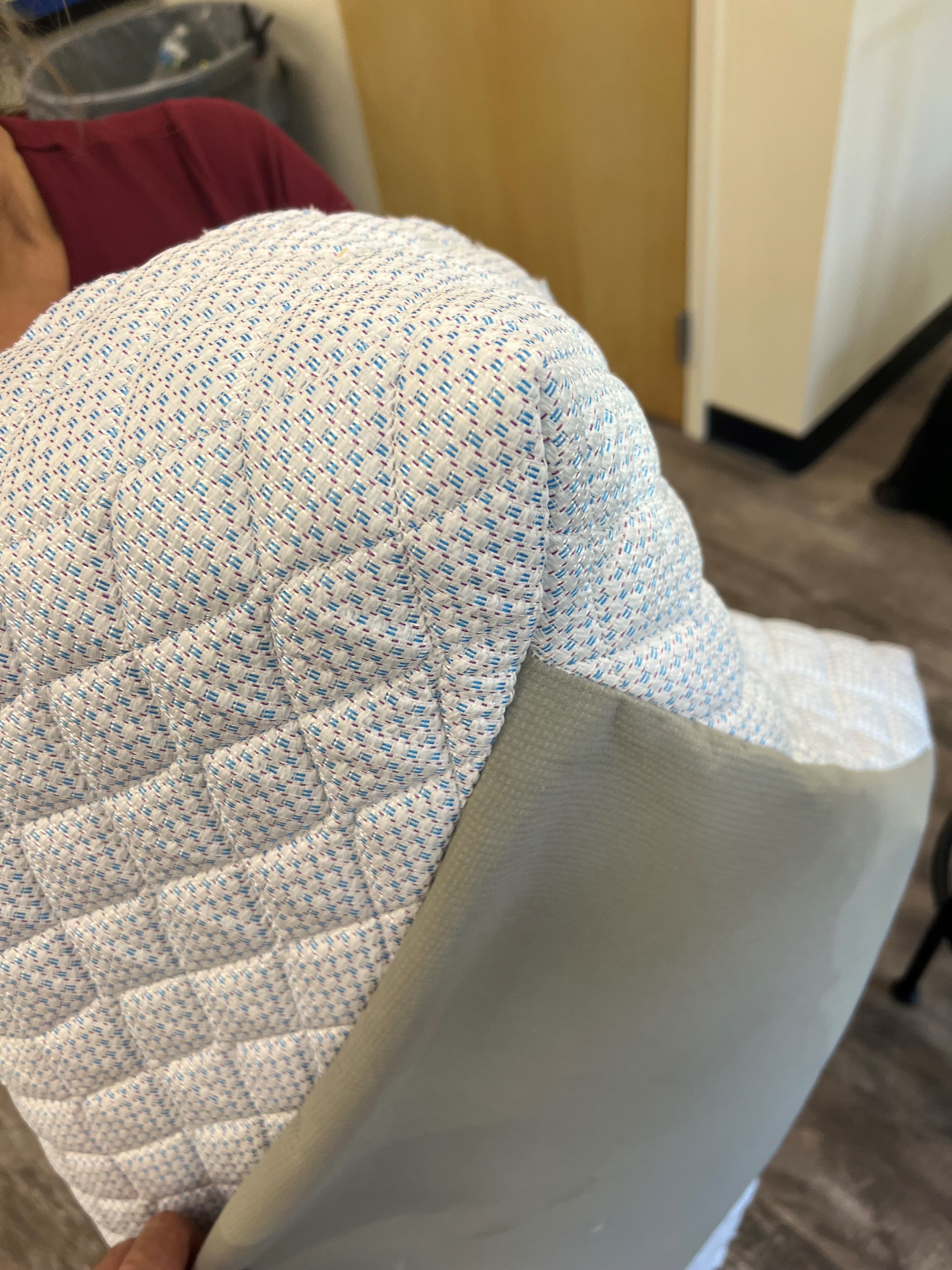

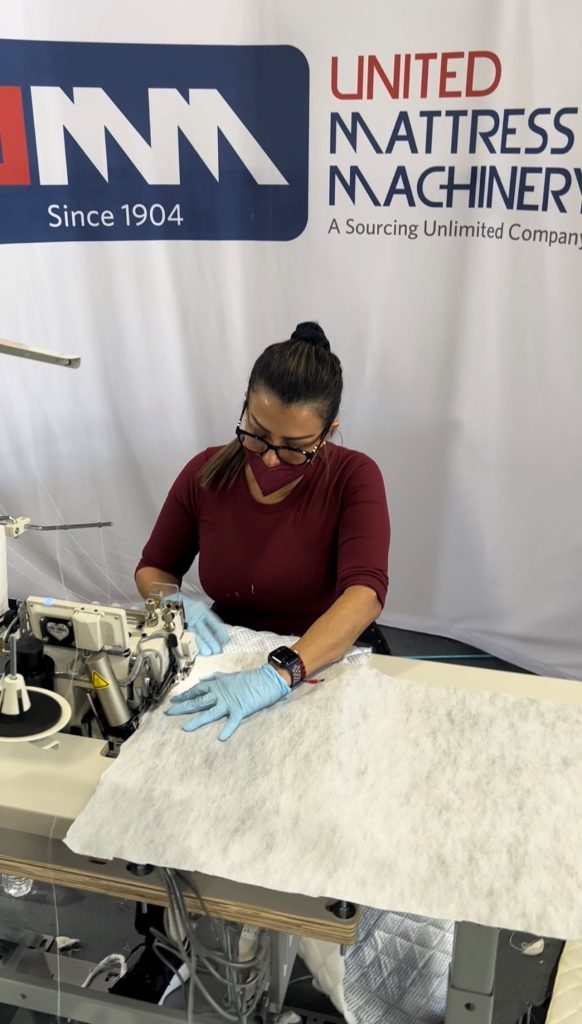

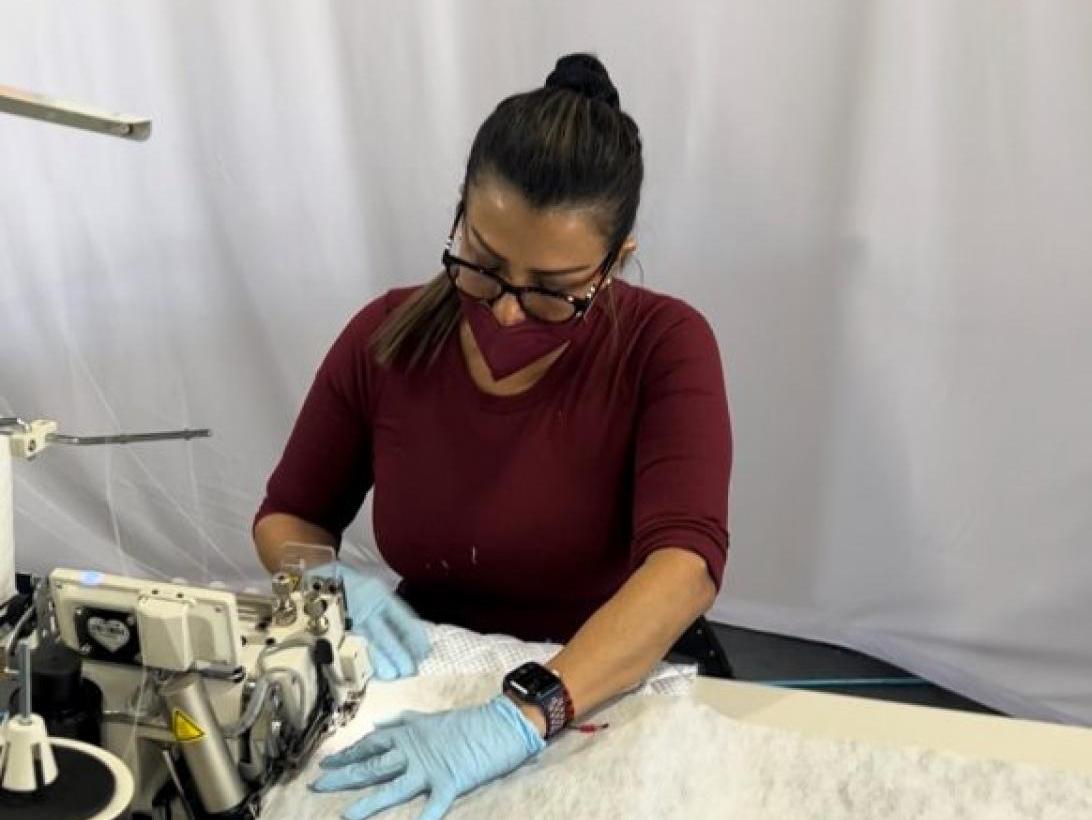

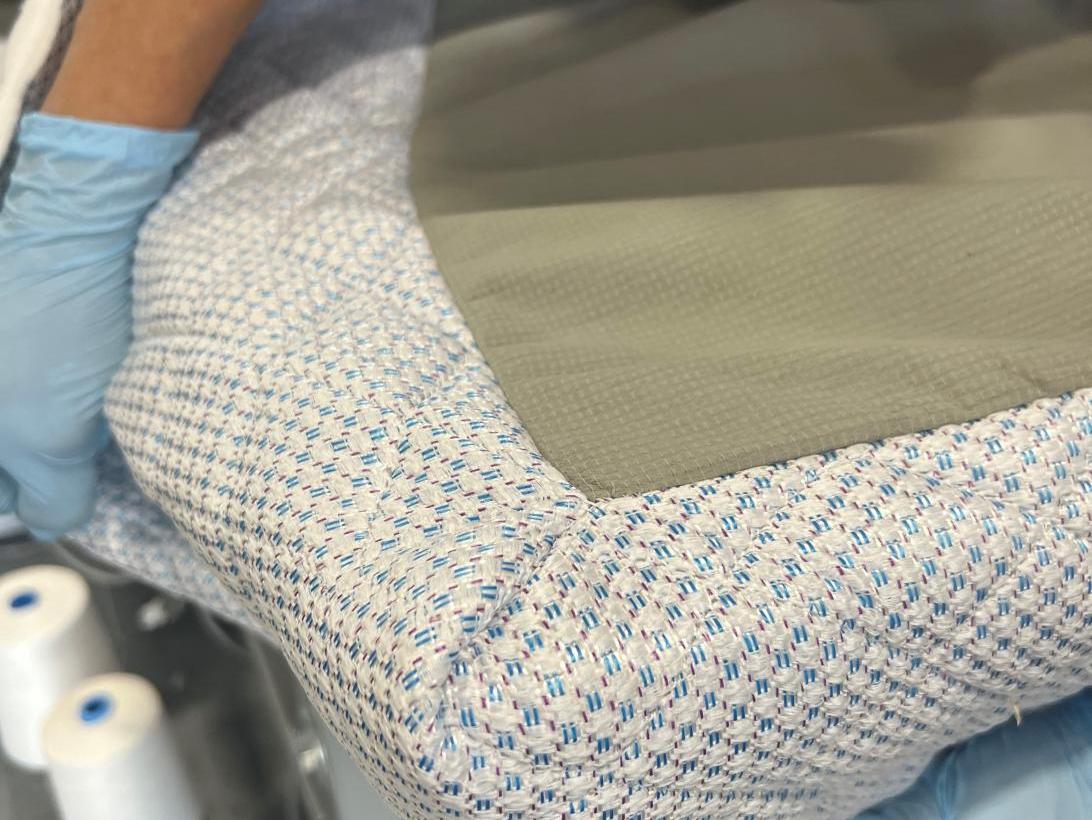

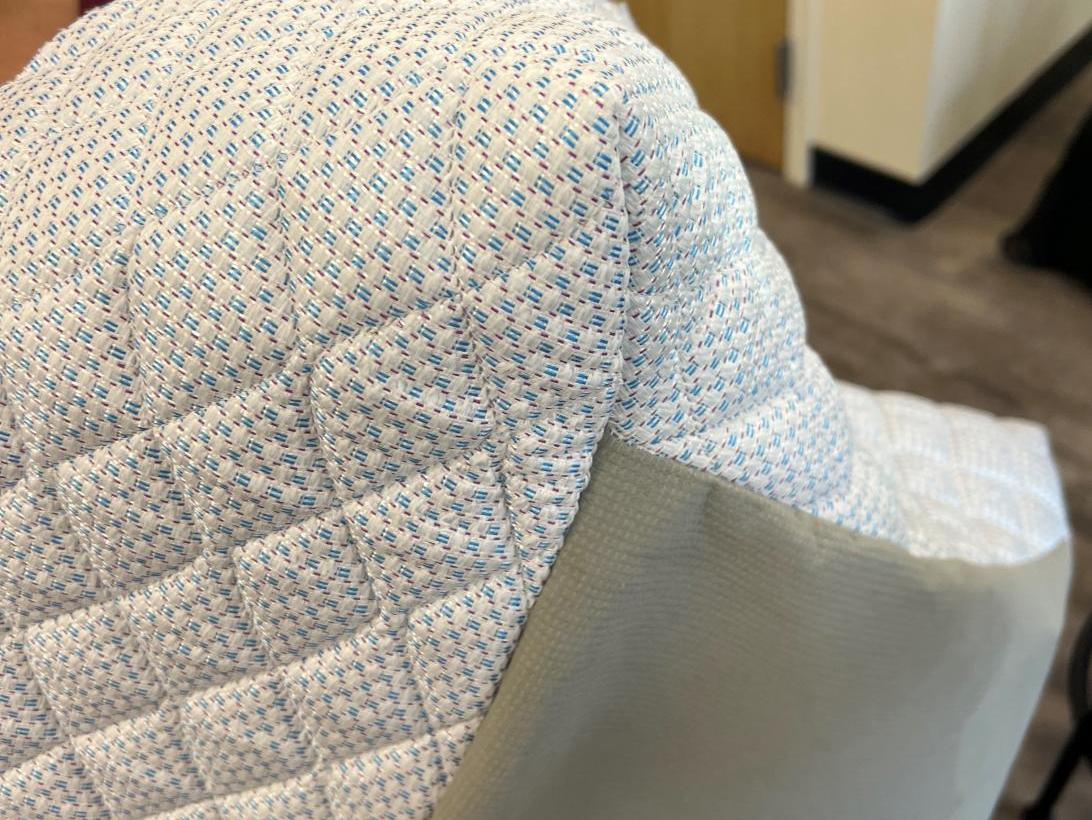

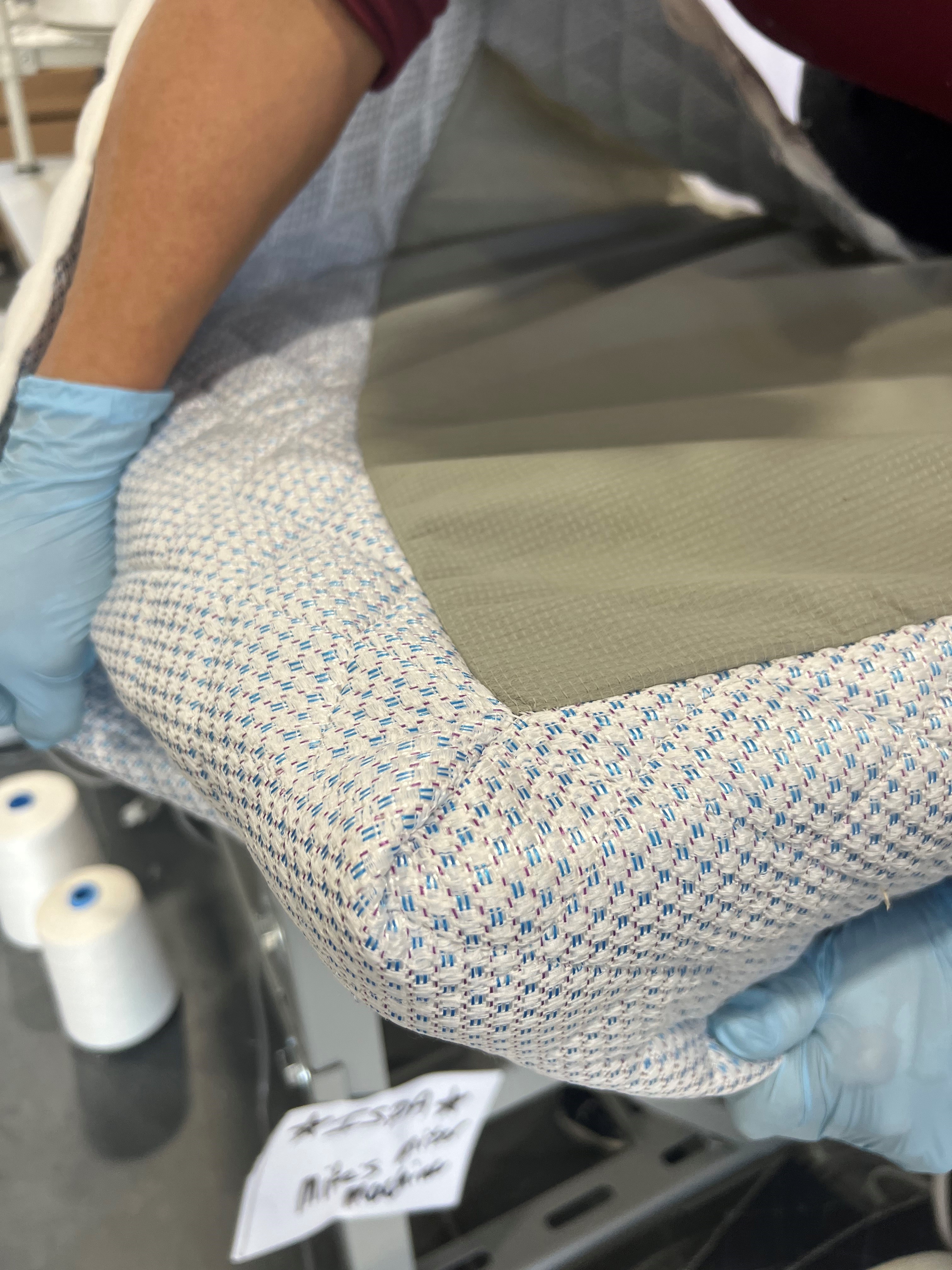

The UM-55 continental mitering machine creates a miter corner while attaching the inner non-woven decking in a single process. A quilter border and a non-woven material are fed with the UM-55 which is equipped with our VTF – variable top feed technology, in one pass, as the VTF system keeps panels matched in linear length.
- Reduces labor
- Miter corner is cut with UM-55
- Production: 160 pc/8 hours
- Speed: 5000 rpm
- Chainstitch
- Direct Drive motor
- Variable top feed mechanism
- Electronic foot lift and needle positioning
| Stitch type | chainstitch |
| Max sewing speed (rpm) | 5000 |
| Max recommended sewing speed (rpm) | 4500 |
| Needle height | 1/2″ (12.7mm) |
| Auxiliary feeding | top feed mechanism |
| Motor | direct drive |
| Presser foot height | 1/2″ (12.7mm) |
| Voltage | 220 (alternative voltages available) |
| Current (amps) | 5 |
| Air pressure (psi) | 80 |
