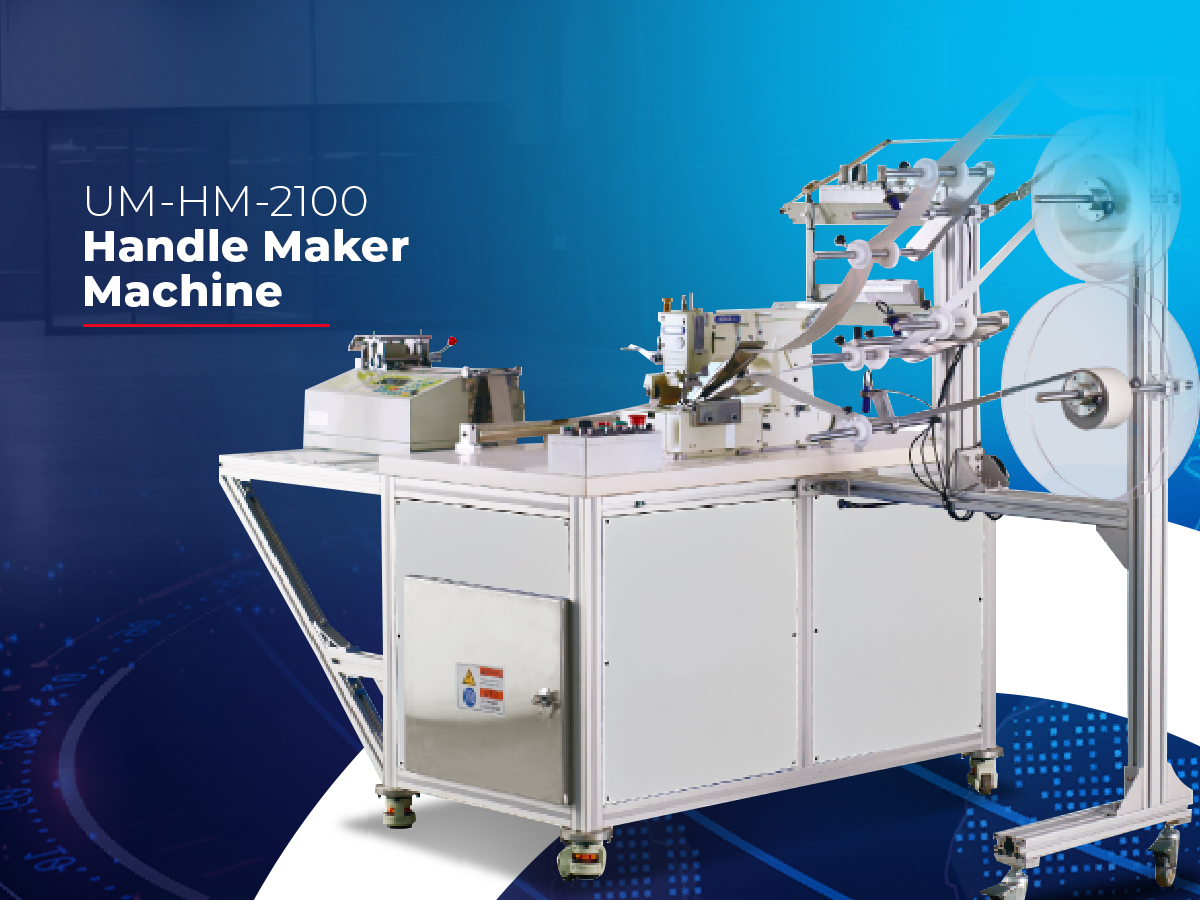

UM-HM-2100 Handle Maker Machine
UM-HM-2100 Handle Maker Machine

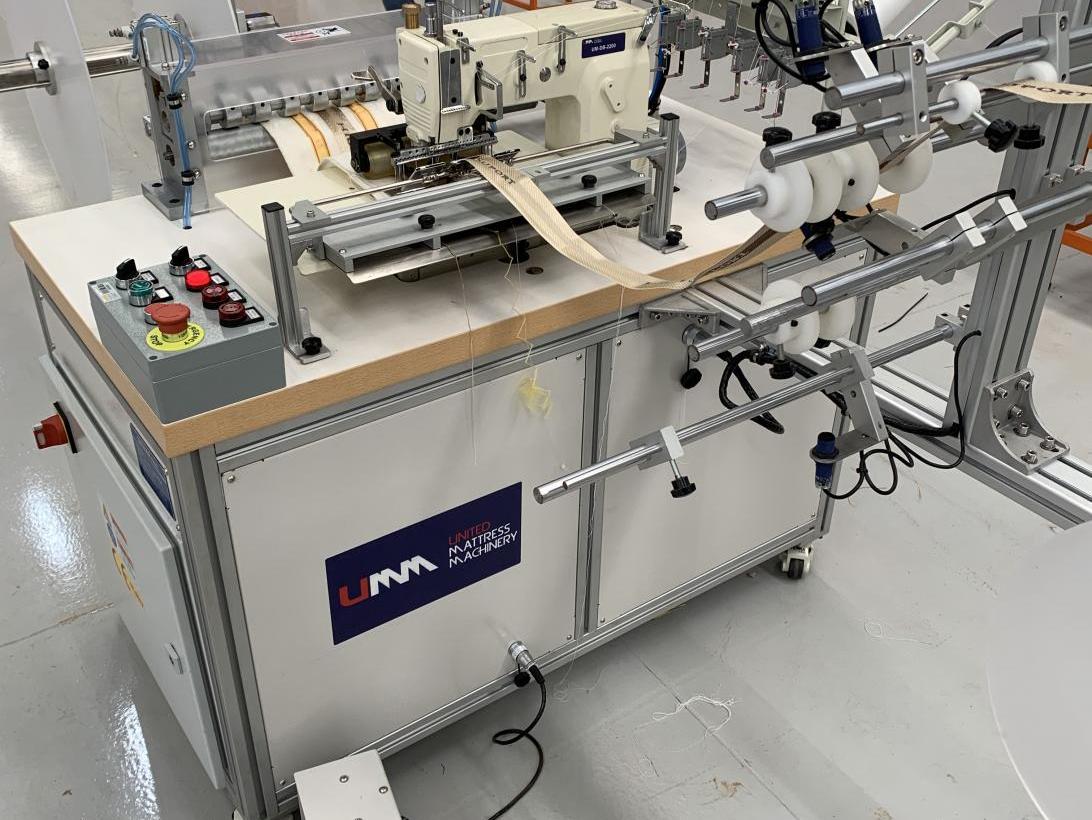

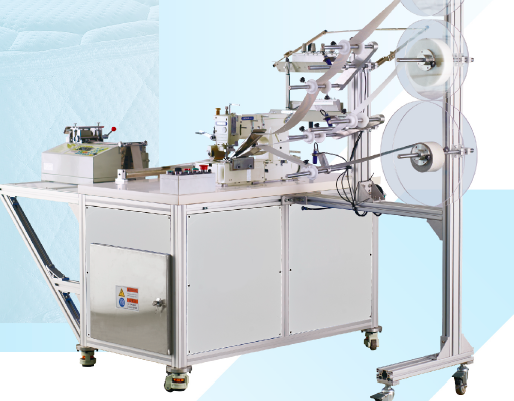

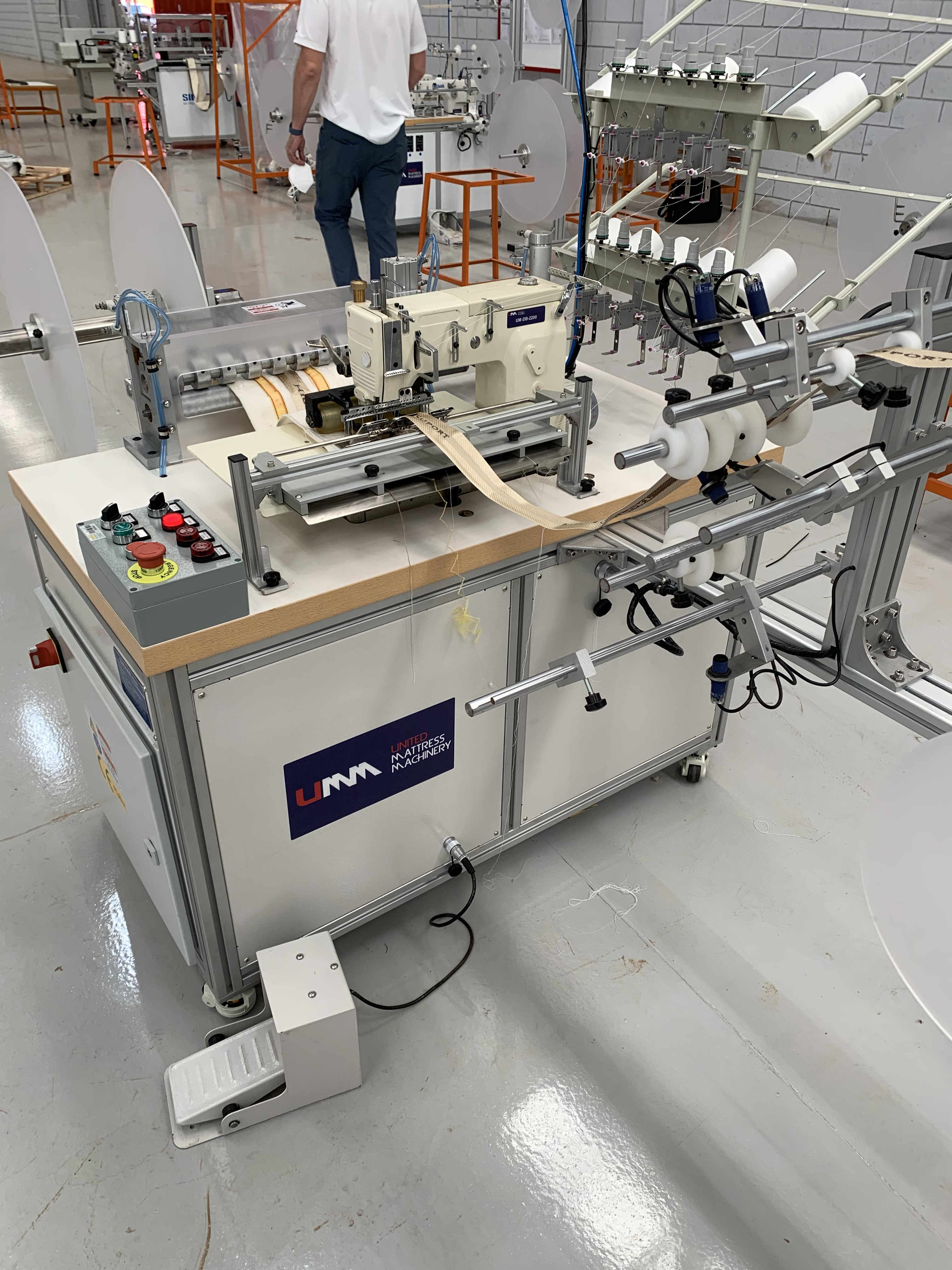

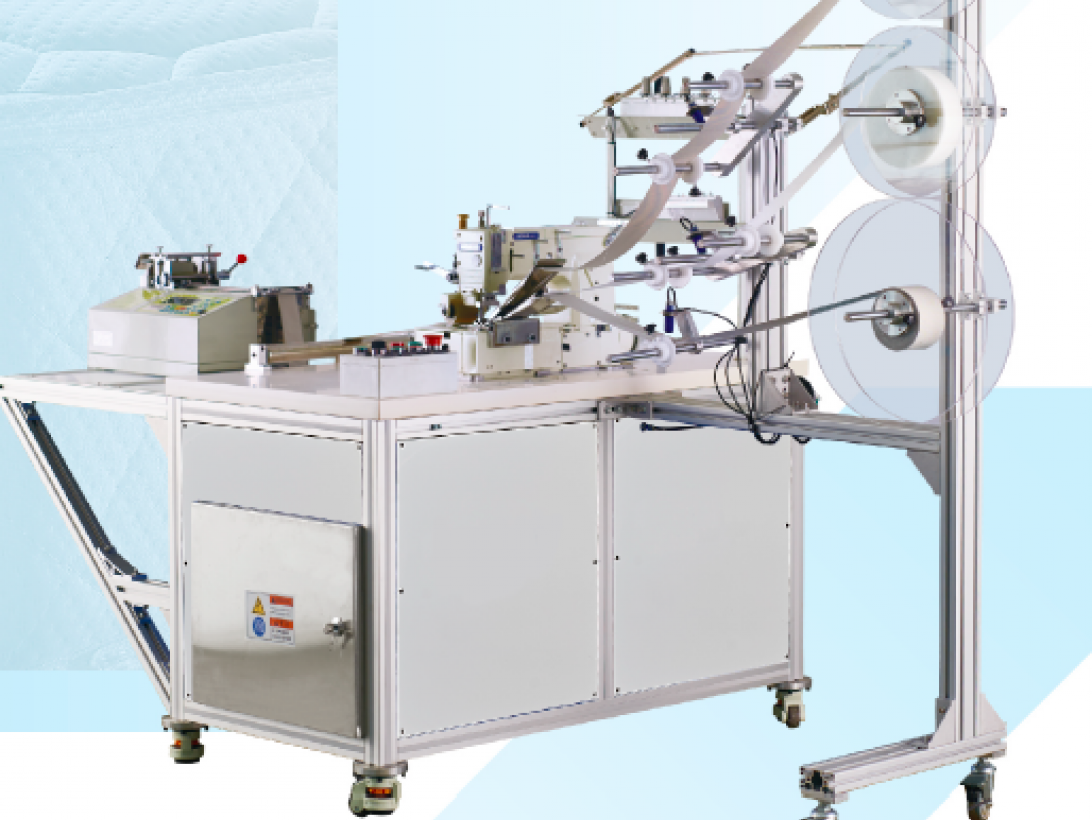

The UM-HM-2100 is a handle strap products system. It’s a chainstitch, multi-needle sewing machine that folds the handle material and sews handle strap together in one operation.
- Automatic thread break detection
- Material run out detection
- Automatic winder
| Stitch type | 12 needle chainstitch |
| Standard folder | 2″ width/ctr seam |
| Max sewing speed (rpm) | 4000 |
| Recommended sewing speed (rpm) | 3000 |
| Needle size | 23 |
| Needle height | 11mm |
| Presser foot height | 3/8″ (10mm) |
| Aux feed drive | integral puller |
| Motor type | electronic needle positioner |
| Max thickness capacity | 6mm/quilted pkg |
| Voltage | 220 |
| Yield | 138′ (12m) |
| Current (amps) | 5 |
| Air pressure (psi) | 80 |
| Air consumption (cfm) | 0.5 |
| Footprint | 35″ x 102″ (.88m x 2.6m) |
