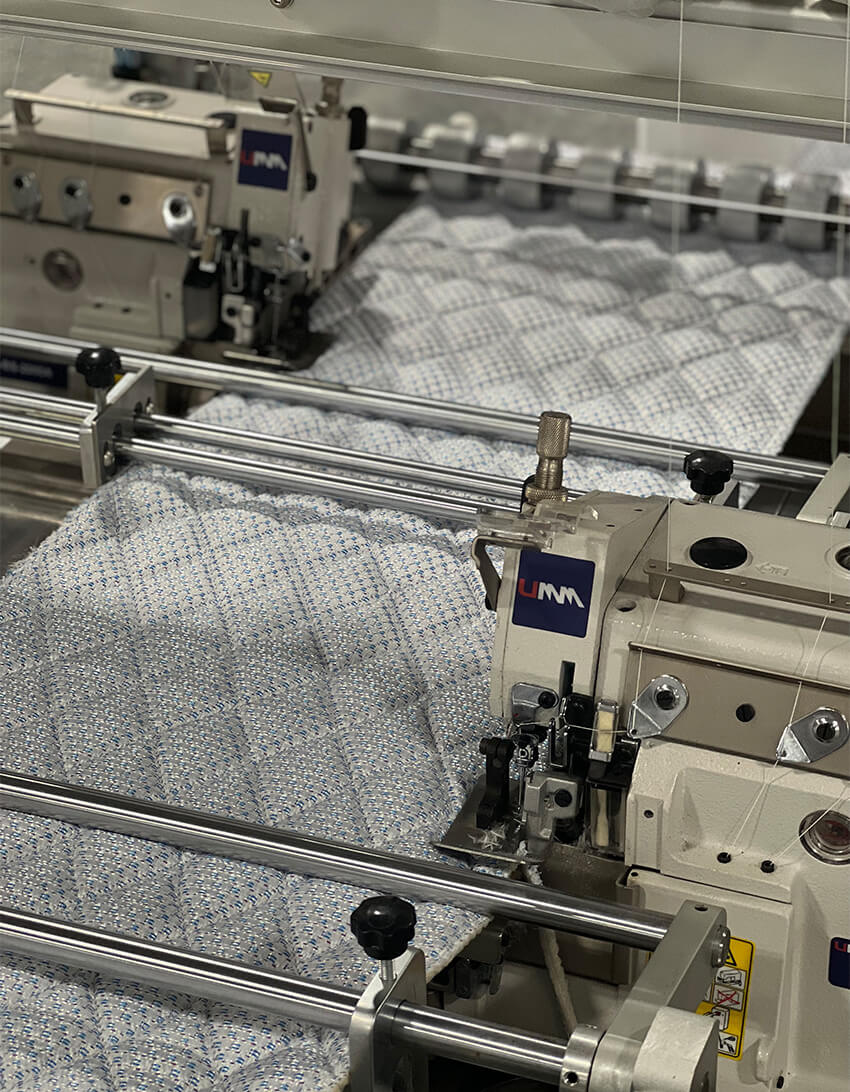

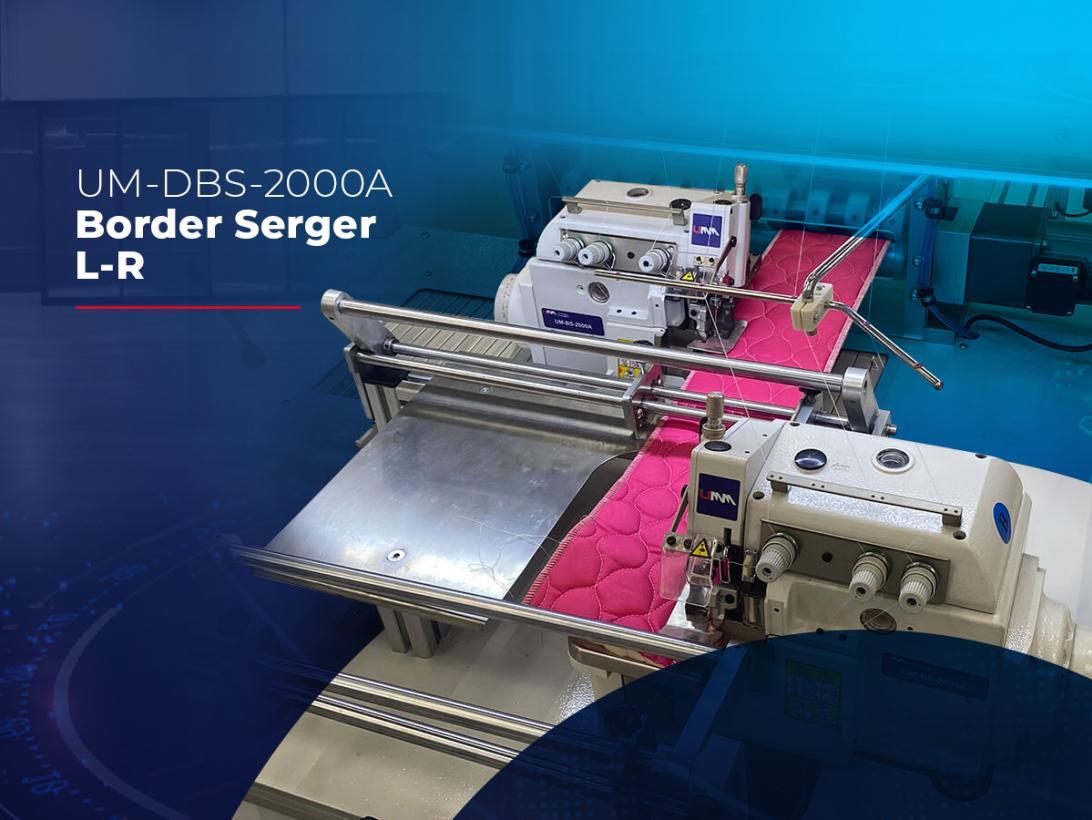

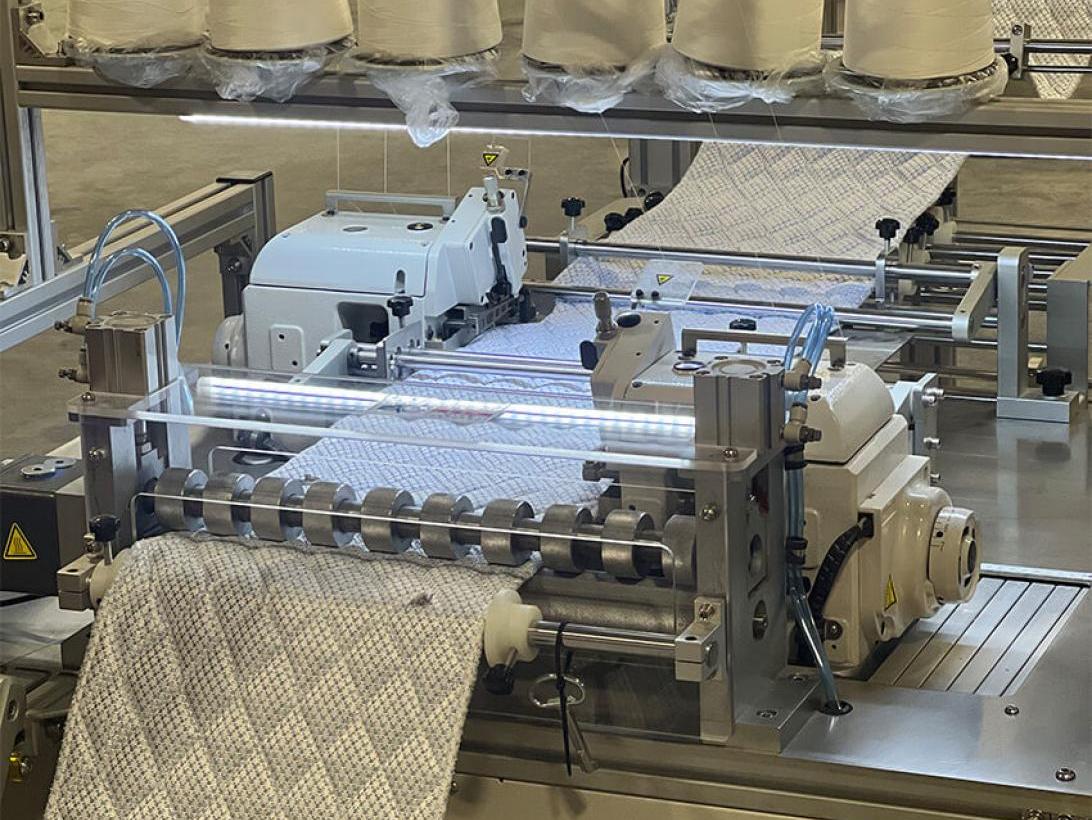

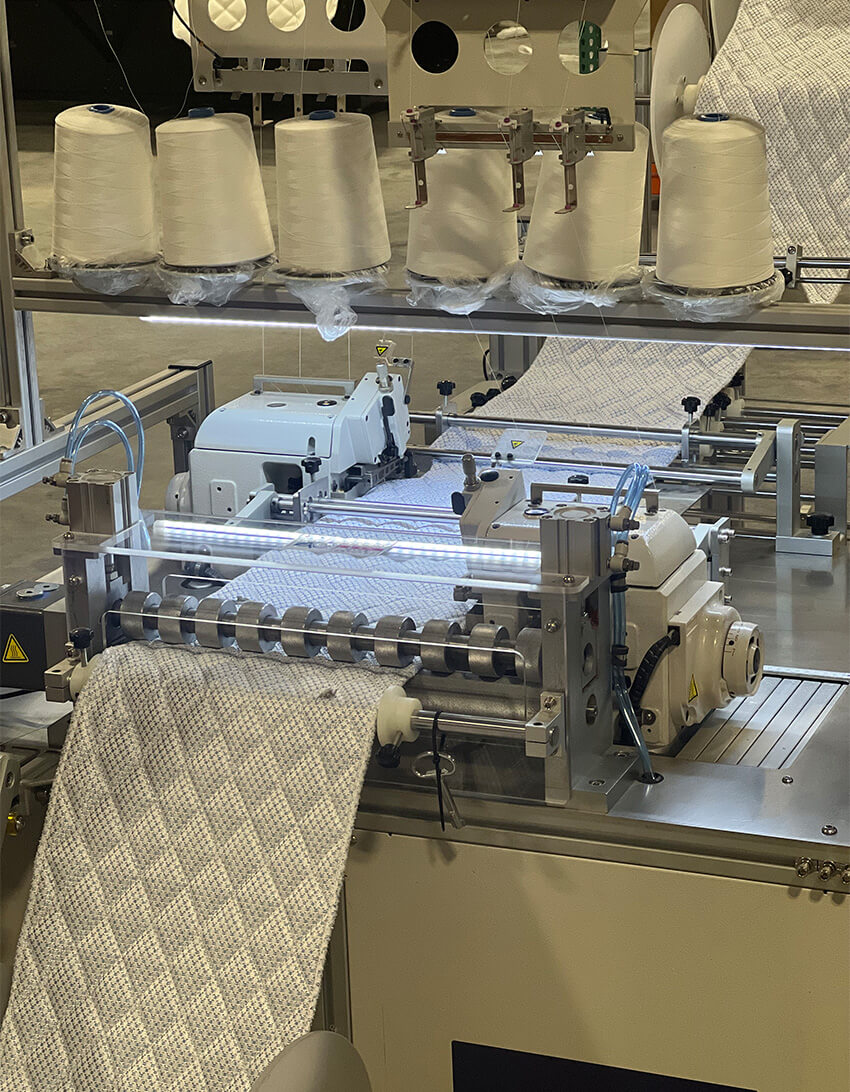

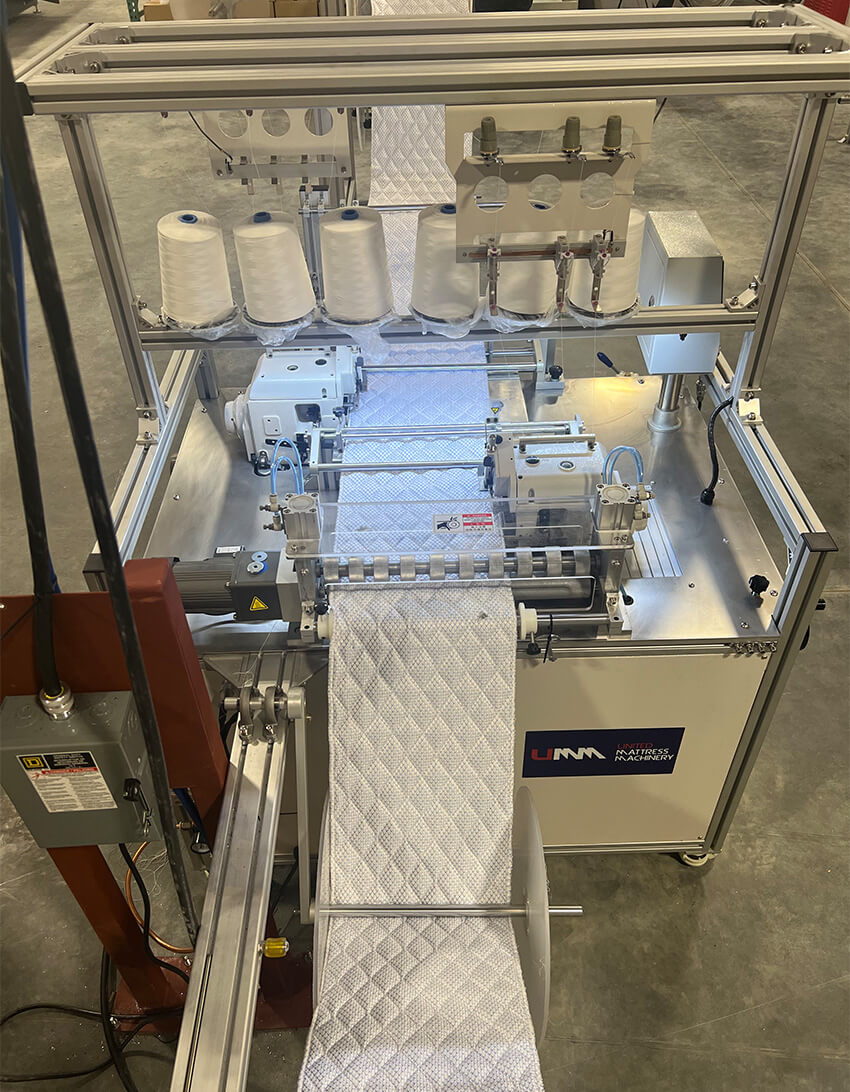

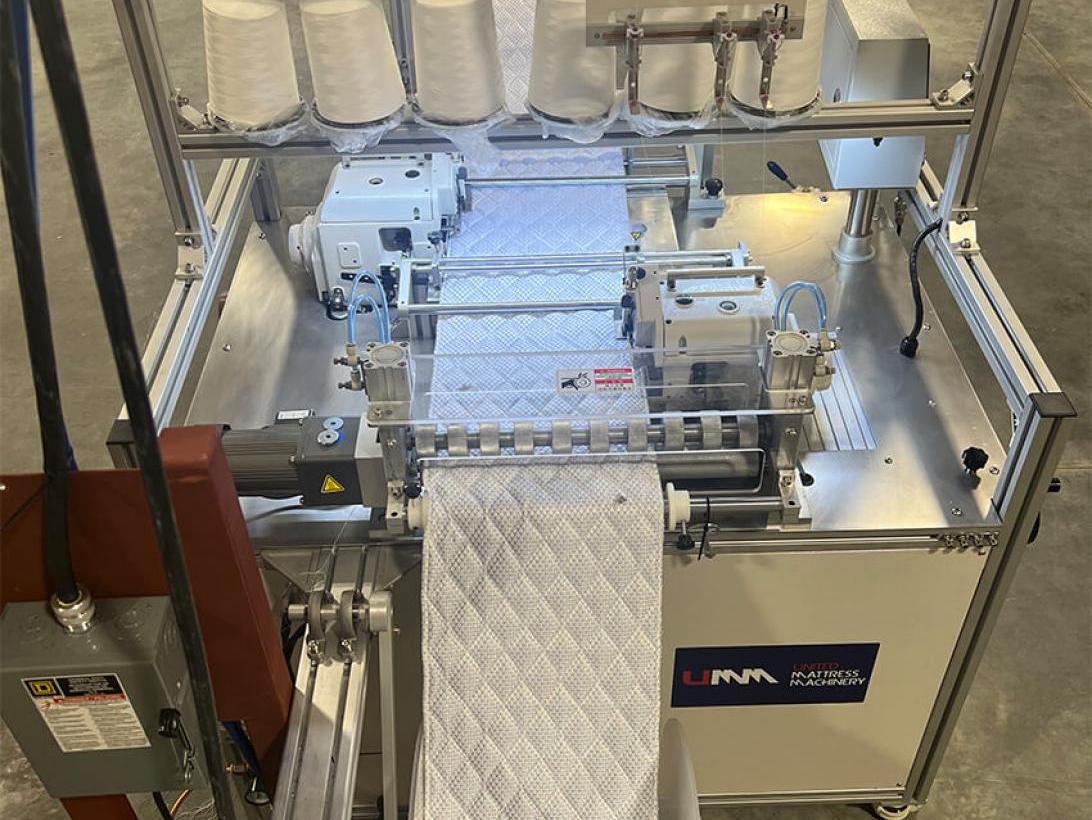

UM-DBS-2000A Double Border Serger L-R

The UM-DBS-2000A, with left and right hand sewing heads, is designed for the continuous flow of production and automation for mattress borders.

Our direct drive motors eliminate mechanical belt drive
Raw border can be pulled directly from cart or roll
Serged borders feed directly to windup system or to optional border measure and cut system
Material run out and thread break detection
Patented puller system
Advanced waste removal system

Max sewing speed (rpm)	5000
Recommended sewing speed (rpm)	4000
Max border thickness	1″ (25mm)
Min panel thickness	flat
Border width	3.5″ – 21″ (89mm – 533mm)
Stitches per inch (spi)	5
Yield	40 +/- yards/minute (36.5 +/- meters/minute)
Needle type	DCx27
Needle size	21
Voltage	220 (alternative voltages available)
Current (amps)	15
Air pressure (psi)	80
Air consumption (cfm)	4
Footprint	54×112″ (1.3×2.8m)
