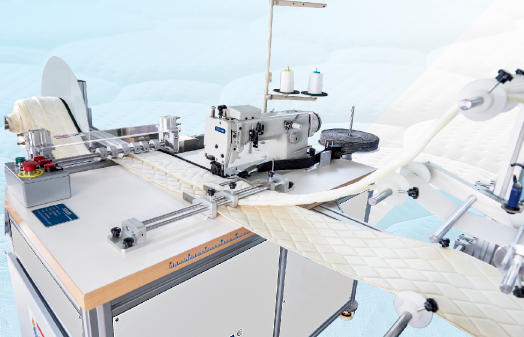

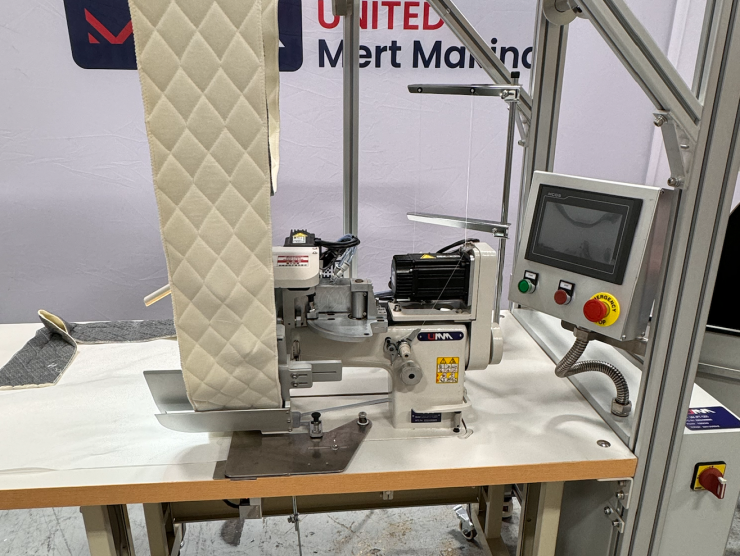

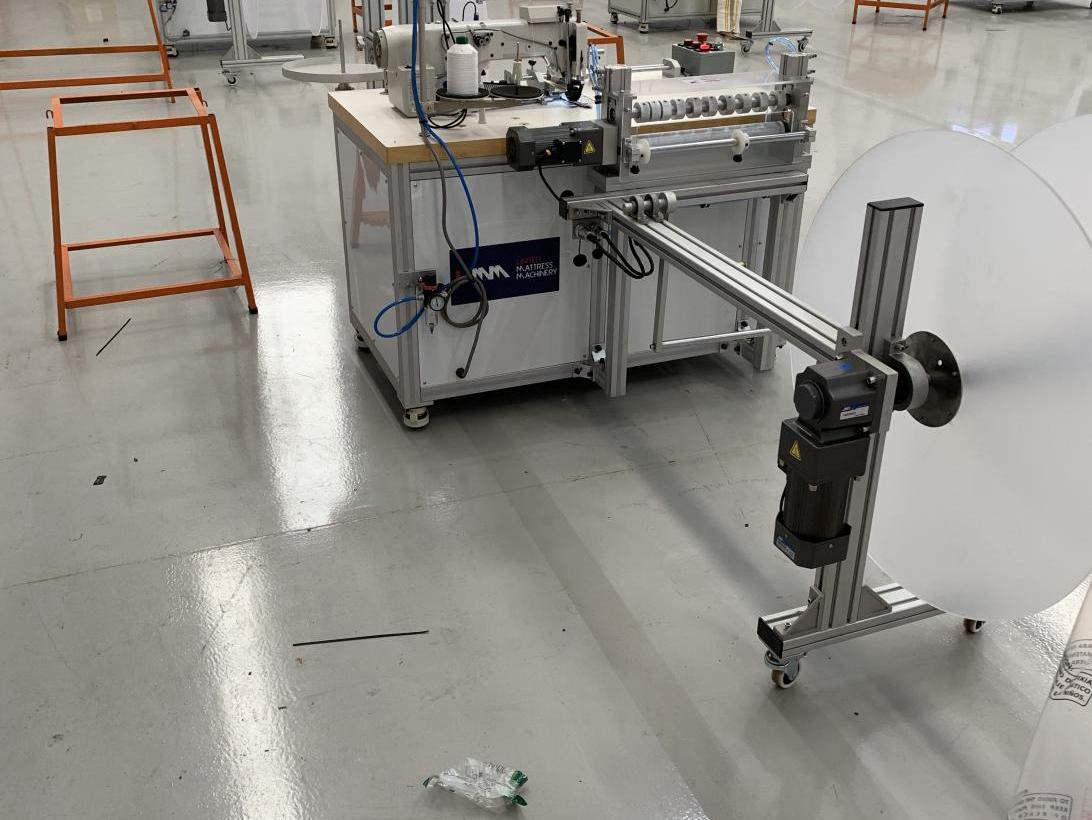

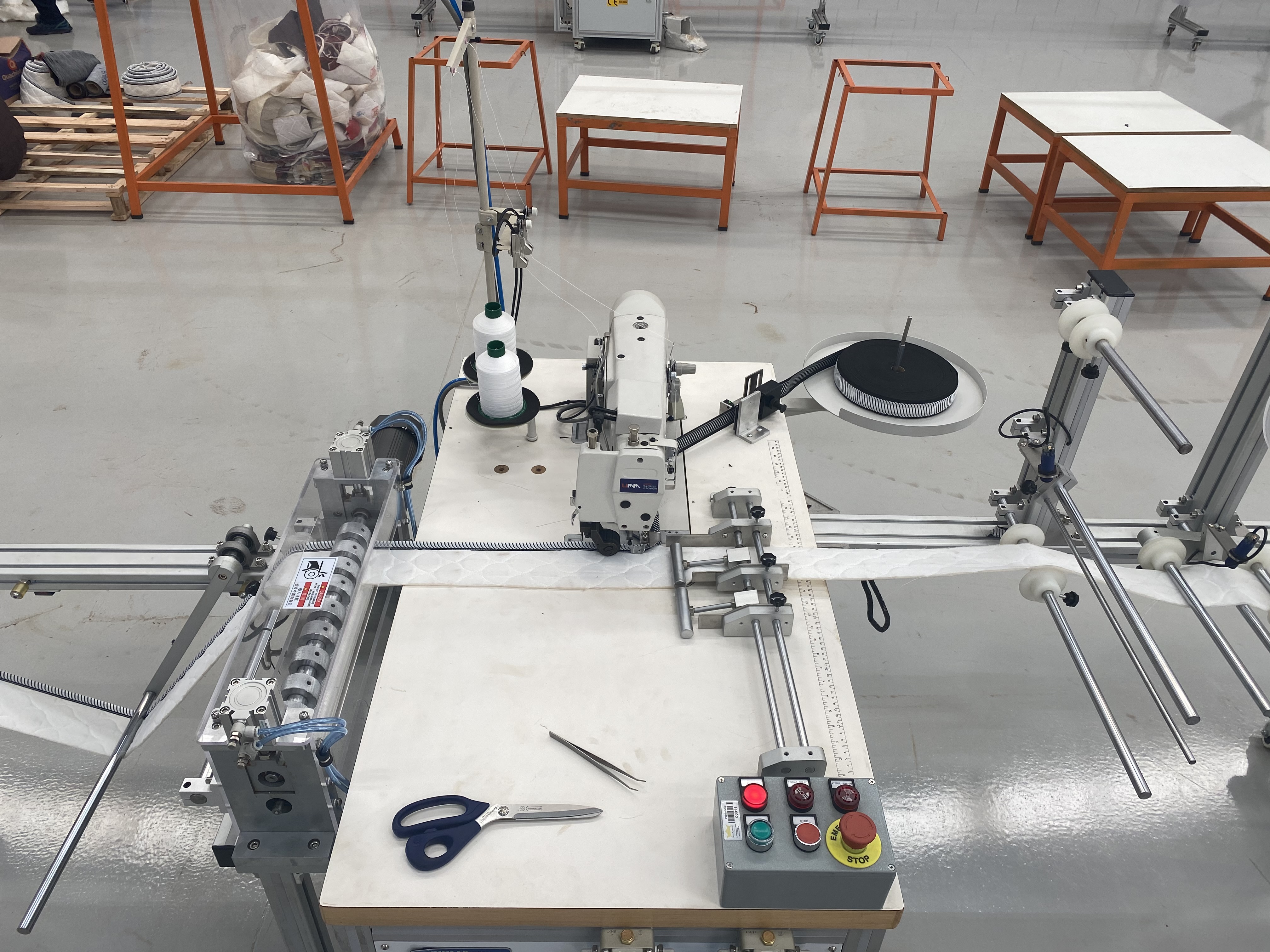

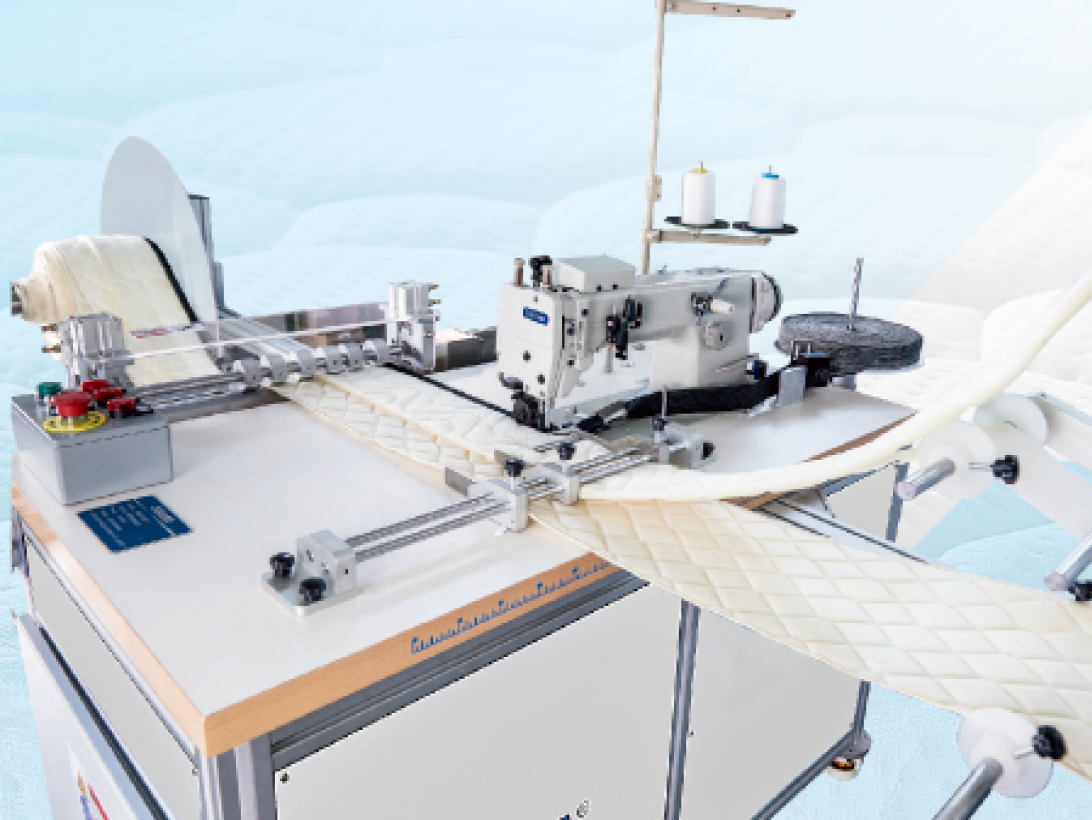

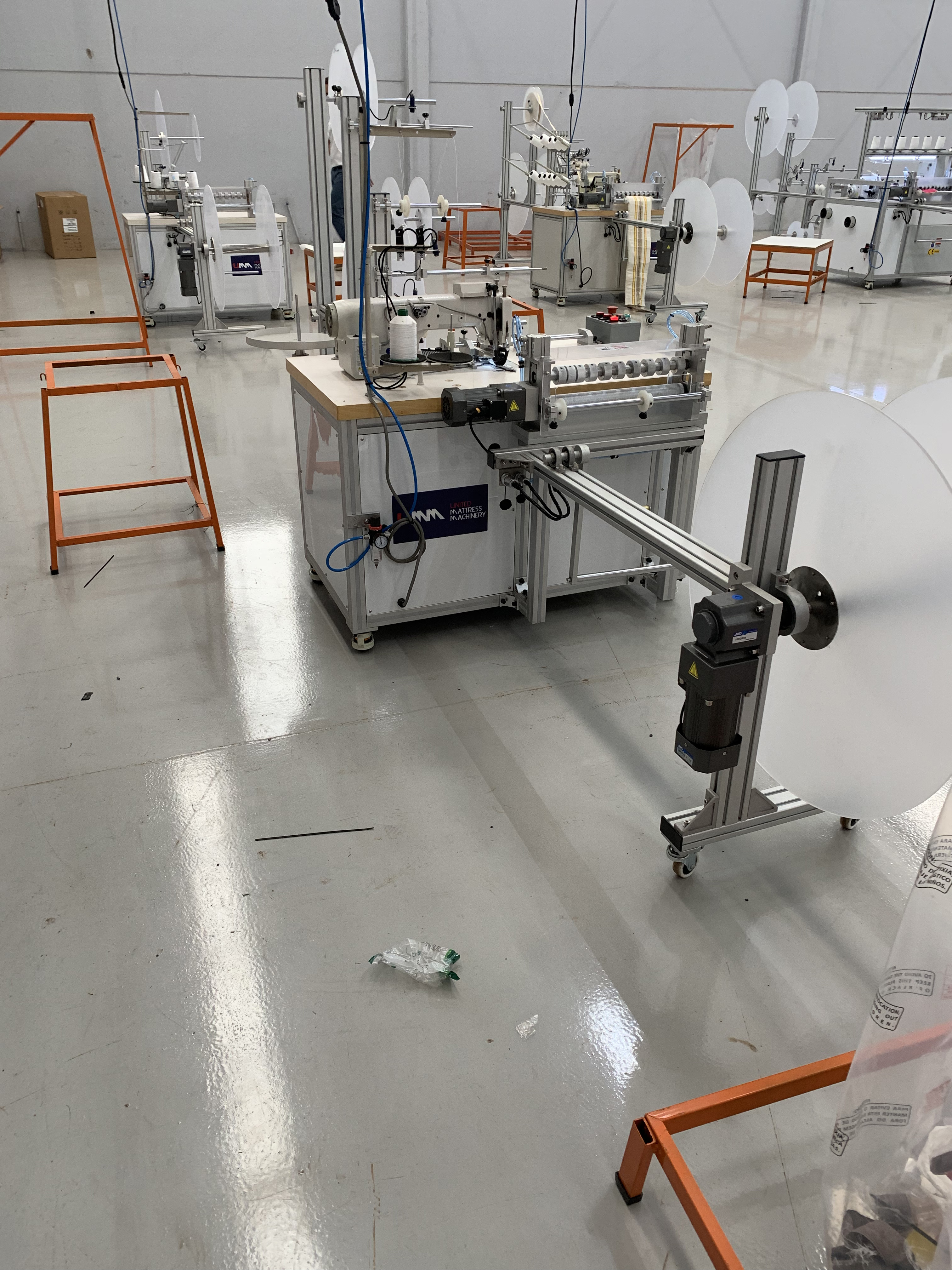

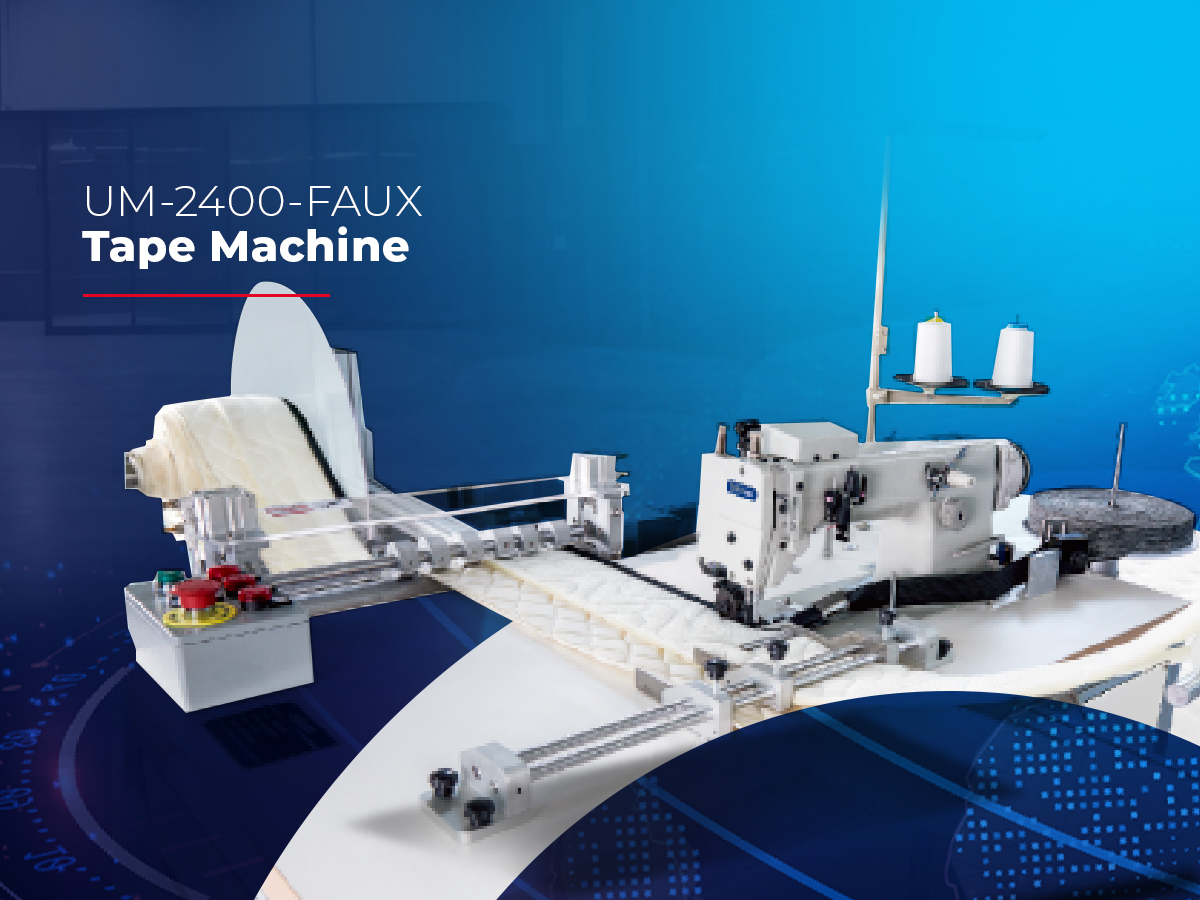

UM-2400-FAUX Tape Machine
UM-2400-FAUX Tape Machine
UM-2400-FAUX Tape Machine
The UM-2400-FAUX automatically sews faux tape seams to borders and simulates the stylish continental pillow top covers.
Product Information
Technical Details
Machine Video
Catalog
Adjustable folder from 2-8″ (50mm – 202mm)
Eliminates one tape edge operator
Auto thread break, tape and material run out
High speed chainstitch
Patented rear puller system
Speed: 4500 rpm
Max material thickness: 5/16″ (8mm)
Max sewing speed (rpm)
5000
Max recommended sewing speed (rpm)
4000
Max border thickness
5/16″ (8mm)
Min border thickness
flat
Material width
18″ (457mm)
Stitches per inch (spi)
0.5
Yield
60’/min (18.3m/min)
Needle type
135×17
Needle size
22
Voltage
220 (alternative voltage available)
Current (amps)
10
Air pressure (psi)
80
Air consumption (cfm)
1/2
