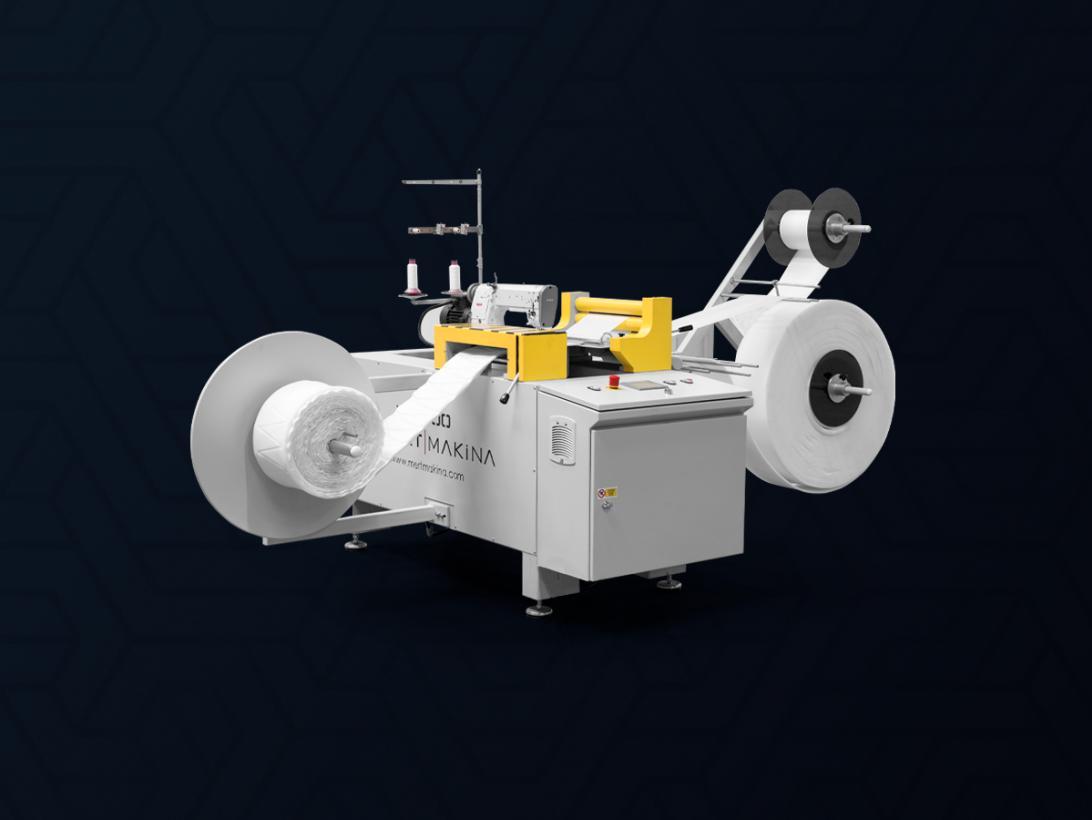

M-4400 Mattress Border Machine
M-4400 Mattress Border Machine
The United Mert Makina M-4000 – 4400 mattress border machine provides the quilting of the mattress side wall in mattress production. M-4400 has the ability to make production both high-speed and without the need of an operator, while MMS-4000 has the feature of lock stitch, M-4400 with its features such as chain stitching, warning system in cases of thread breaks and stock ends, and stopping automatically. These machines can sew 3 types of patterns according to the selectors setting
- Lock Stitch; High-quality sewing with M-4000 lock stitch feature.
- Chain Stitch Speed ; High-speed production with M-4400 chain stitch feature.
- Thread Break, any of raw material finishes Warning System ; A system stopping the machine automatically (M-4400)
- Working without operator ; Working without the need for an operator with its automatic stopping feature (M-4400)
- Electronical PLC Control; faultless working with the Driver Control
- Perfect Pattern Height Adjustment ;pattern height adjustment with PNP photocell.
- Ergonomic Structure ; Ergonomic structure rolling over stock and produced side wall quilting and saving time
| DEFINATION | M-4400 Mattress Bordure Machine |

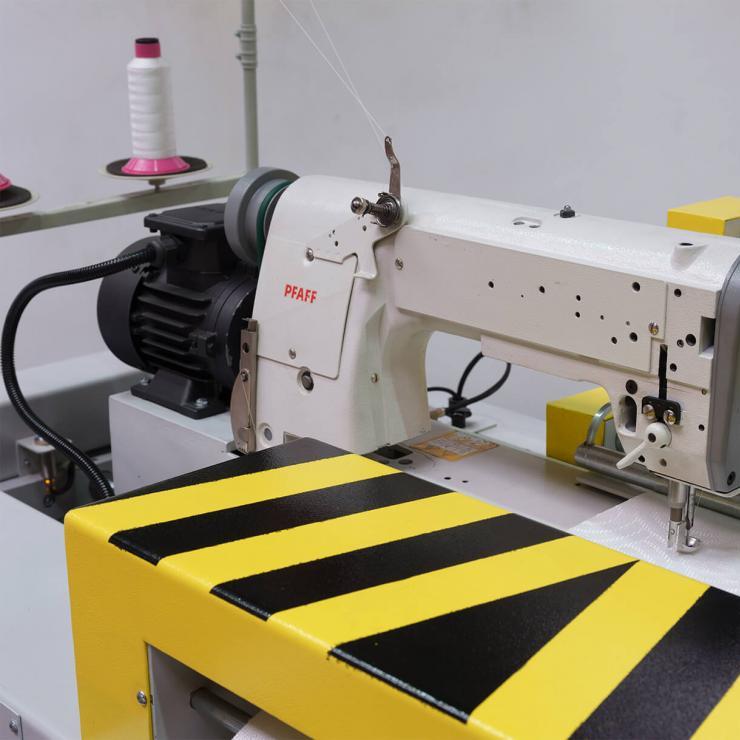

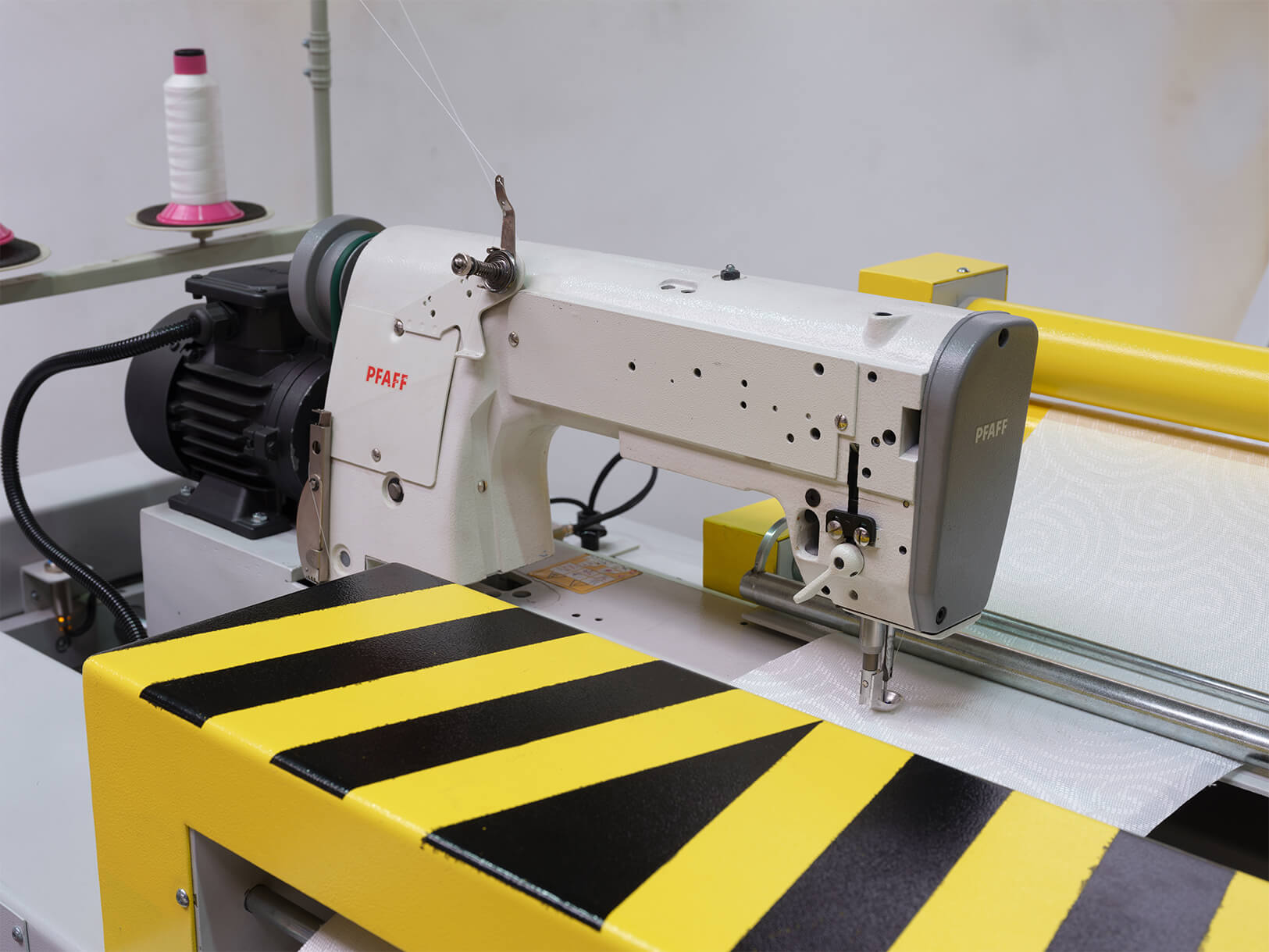

| Sewing Head | PFAFF 5483 |
| Sewing Type | Chain Stitch |
| Max. Fabric Width | 30 cm |
| Max. Working Width | 26 cm |
| Thickness | 1 cm Foam + Fabric + Nonwoven |
| Warning System | Automatic stop when thread break or finish |
| Working Without Operator | Availible |
| Dimensions | 150 cm x 330 cm c 155 cm (Width x Length x Height) |
| Required Set-up Area | 200 cm x 350 cm |
| Weight | 500 Kg |
| Power | 3 Phase 380 V 4 kW |
| Quality Standart | CE |
| Guaranty | 2 Years |
Hammadde veya ip bittiğinde otomatik durma sistemi
