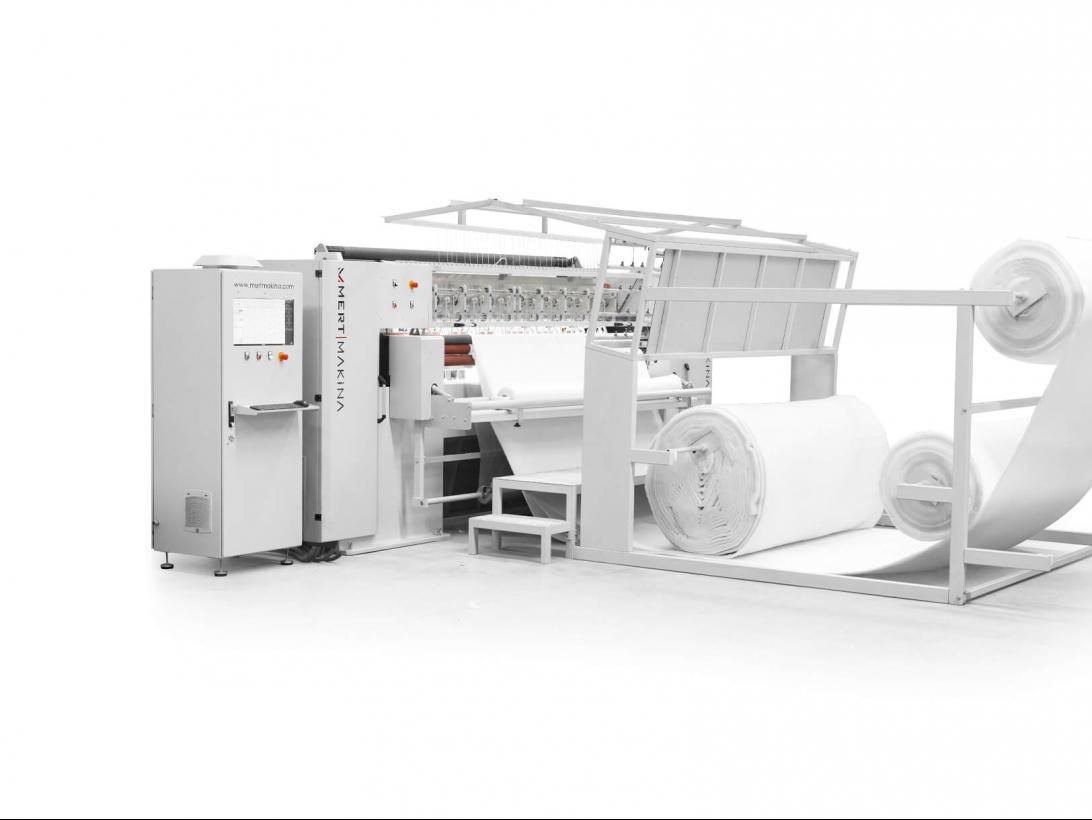

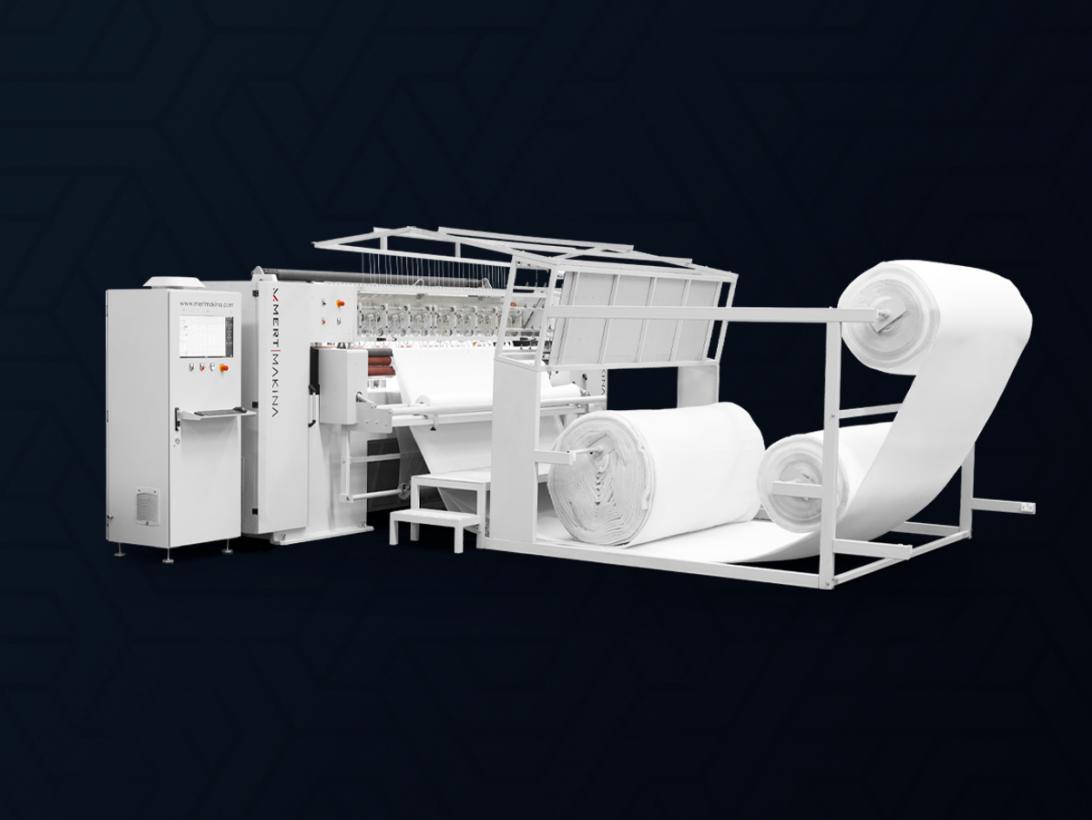

M-1200 Multi Needle Chain Stitch Quilting Machine

M-1200 Multi Needle Chain Stitch Quilting Machine


At United Mert Makina, we pride ourselves on using only Siemens products in the electrical and electronic components of our machines. This unwavering commitment to quality ensures that our machines offer a wide range of advanced features, enabling seamless and error-free sewing processes. Our machine is designed to facilitate manufacturing, thanks to its simple maintenance, easy needle change, and clear needle alignment display based on the selected pattern. The high-speed processing of the machine expedites leaf production, while the advanced features minimize the risk of errors. The machine can automatically stop in case of thread breakage, guaranteeing uninterrupted and seamless sewing in all materials. Our machine boasts unlimited pattern loading capabilities and 900 preloaded patterns, enabling you to produce an array of intricate designs with ease. Additionally, we offer a 2-year guaranteed remote service to ensure uninterrupted production and reliable performance. Investing in our M-1200 quilting machine will significantly enhance the efficiency and productivity of your business. With its durable material structure and user-friendly interface, you can rely on the machine to provide a long-lasting and seamless sewing experience. Choose our M-1200 quilting machine today and take the first step towards maximizing your production potential and achieving success in your business.
  • Technical Details
  • Specialities
  • Machine Video
  • Catalog
Definition M-1200 Multineedle Chain Stitch Quilting Machine
Max. Sewing Speed 1200 Rpm
Stitch Length 2 mm - 7 mm
Quilting Thickness Min. 0,5 cm - Max. 10 cm
Quilting Speciality 360º
Tack & Jump Availible
Patterns +300
Needle Bar Number 3 Bar
Space Between Needle Bars 75 mm x 75 mm
Space Between Needles 25 mm
Quilting System CNC Servo Motor Chain Stitch
Max. Quilting Width 2500 mm
Max. Material 2700 mm
Max. Horizontal Movement 30 cm
Recommended Top Thread Tex: 40-Dtex 140/3 CF polyester
Recommended Bottom Thread Tex 35 Dtex 167/2 Texturize Polyester
Recommended Needle Number 160/23
Capacity Maximum 420 Meter in Straight Sewing / Approximately 250 meter
Top Thread Cutting Availible
Weight 6.500-7.000 kg
Machine Dimensions 650 cm x 495 cm x 250 cm ( length x width x height)
Space Required for Shipment 20 HC Container
Space Required for Set Up 5.5 m x 6.5 m (Width x Length)
Power 3 Faz 380 V / 8 kW
Air 6 Bar
Guaranty 2 Years
Quality Standart CE
