M-1100 Automatic Mattress Tape Edge Machine

M-1100 Automatic Mattress Tape Edge Machine


The United Mert Makina M-1100 machine, which is manufactured with Siemens system quality, offers practical solutions that can add technological advancements to your production. With separate speed adjustments for corner turning and straight stitches, the machine provides easy control through four pedals that can be operated by the workers. Moreover, the sensors on the machine allow for automatic or pedal-based corner turning adjustments, ensuring efficient production processes. Additionally, the M-1100 requires simple maintenance and servicing, ensuring a trouble-free production line. The machine conforms to international standards, ensuring top-notch quality in your production output.
  • Product Information
  • Technical Details
  • Specialities
  • Machine Video

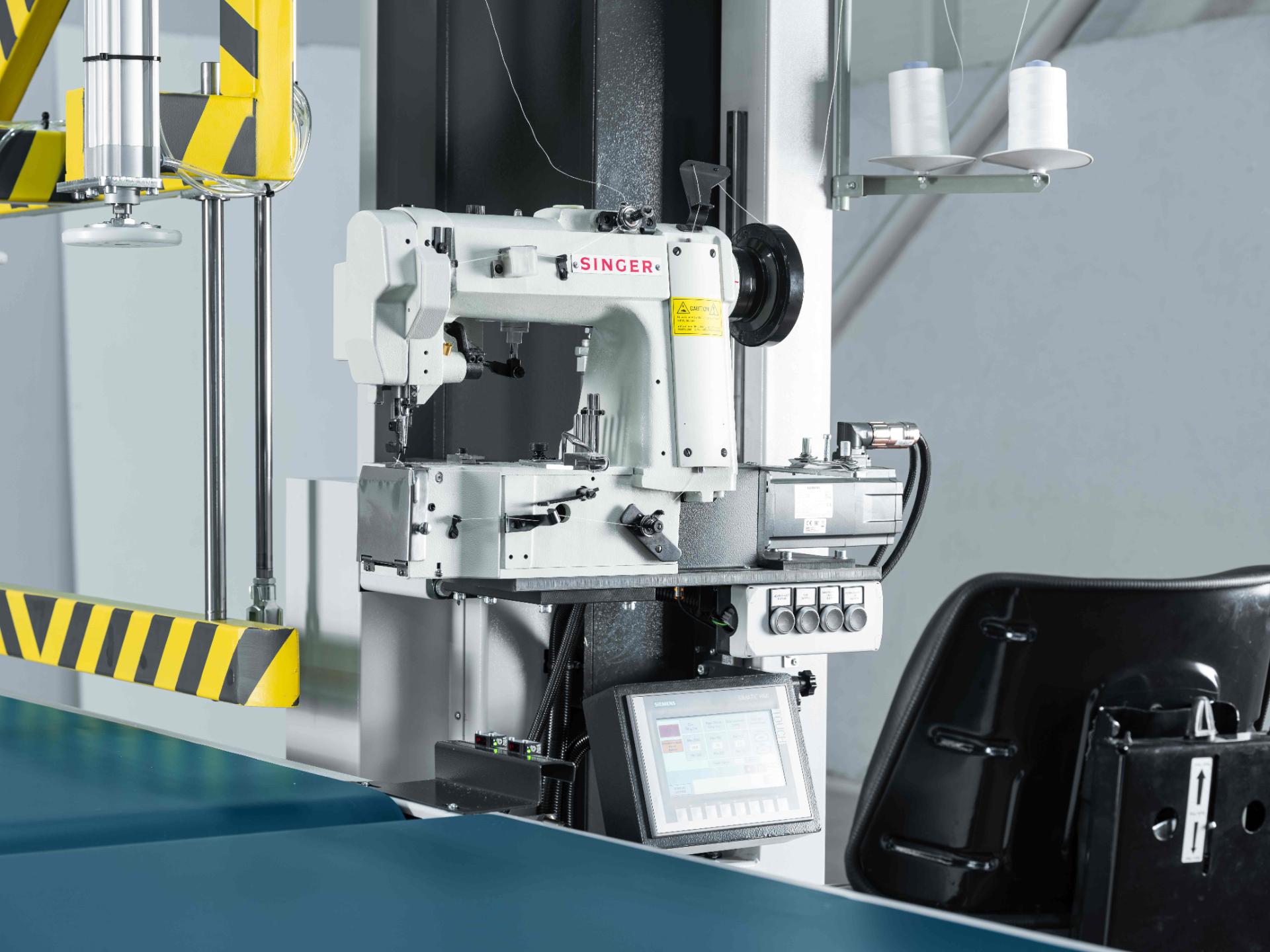

  • Sewing Machine; Chain Stitch machine with double transport for thick materials and non-stop stitching.
  • Height Adjustment; Sewing machine angle and up down adjustment for able to work on mattress with different dimension.
  • Speed adjustment; speed adjustment on screen for straight sewing and corner sewing speed.
  • Conveyor System; anti-static PU belt.
  • Flip - Flopping Mattresses; Dynamic Mattress Positioning systems and eliminating operator handling.
  • Turning Arm; Operator-friendly system to reduce operator fatigue.
  • Screen; Touch screen providing easiness and speed for the operator.
  • Needle Position; Automatic needle and foot lifting with pneumatic system.
  • Extensive Choice of Sewing Guide/ Binder
Definition Automatic Mattress Tape Edge Machine
Sewing Head SINGER 300U / PFAFF 5625
Sewing Speed 3000 Rpm
Stitch Length 2 mm - 5 mm
Capacity 200 - 250 Mattress Depends of the operator speed and mattres size
Stitch Type Chain Stitch
Max. Mattress Size 210 cm x 220 cm

Mattress Height

5 cm - 50 cm
Max. Mattress Weight  200 kg
Conveyor Belt Antistatic PU
Recomended Needle Size 180/24
Voltage 3 Phaze 380 V
Power 5.5 kW
Air 6 - 8 Bar
Weight 1150 kg
Set Up Area 3 m x 4.5 m
Guaranty 2 Years
Quality Standard CE
